Premium Quality · 1/4" x 6" Steel Shank · American Made

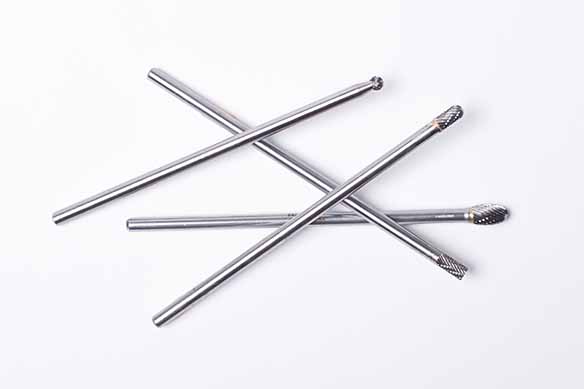

Falcon Tool offers a full line of Long Shank Carbide Burs for tough, hard-to-reach deburring applications. You can expect tool-to-tool consistency from our made in USA Carbide Burs. Lab inspected raw materials, machine-ground cutting flutes and an automated temperature-controlled brazing process results in a premium quality bur.
All burs are provided with a 1/4" x 6" steel shank (standard 1-1/2" length, 2" length and 3" length also available). The steel shank can be easily shortened by hacksaw. Available in a variety of shapes, sizes and fluting styles to fit your application. Burs can be resharpened. Our SPM80R-IMP Pencil Die Grinder is the perfect tool for precision deburring and finishing with Carbide Burs.
Long shank burs are only recommended for use in a well maintained handheld grinder. Stabilize the shank by lightly contacting the workpiece prior to starting the grinder. The use of eye, face and ear protection is strongly recommended!
Available fluting styles include:
Double Cut: Provides very efficient stock removal for deburring, finishing and cleaning applications. Creates a small chip for a good finish. Offers excellent operator control.
Single Cut: General purpose fluting offering medium stock removal for deburring, milling, cleaning, and finishing applications. Produces long chips.
Custom cuts, shafts and lengths available by request. Contact Customer Service for assistance.
Phone: 216-328-0300 Toll Free: 800-321-8512 Email: customerservice@falcontool.com
Contact Customer Service for SDS.

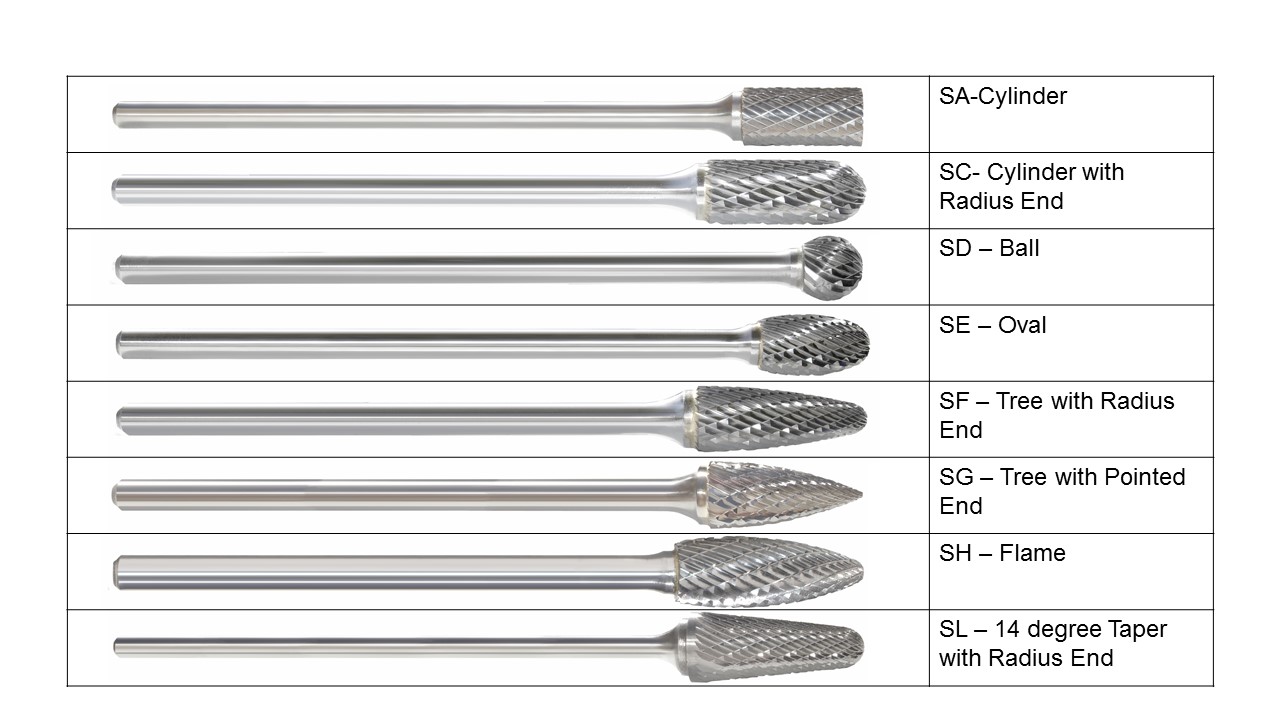

| Shape |
Shape No. |
Cutter
Diameter |
Length
of Cut |
Shank |
SA - Cylinder
|
SA-1L6 |
1/4" |
1/2" |
1/4" |
| SA-3L6 |
3/8" |
3/4" |
1/4" |
| SA-5L6 |
1/2" |
1" |
1/4" |
SC - Cylinder with
Radius End
|
SC-1L6 |
1/4" |
1/2" |
1/4" |
| SC-3L6 |
3/8" |
3/4" |
1/4" |
| SC-5L6 |
1/2" |
1" |
1/4" |
| SD -Ball |
SD-1L6 |
1/4" |
7/32" |
1/4" |
| SD-3L6 |
3/8" |
5/16" |
1/4" |
| SD-5L6 |
1/2" |
7/16" |
1/4" |
| SE - Oval |
SE-1L6 |
1/4" |
3/8" |
1/4" |
| SE-3L6 |
3/8" |
5/8" |
1/4" |
| SE-5L6 |
1/2" |
7/8" |
1/4" |
SF - Tree with
Radius End |
SF-1L6 |
1/4" |
1/2" |
1/4" |
| SF-3L6 |
3/8" |
3/4" |
1/4" |
SG -Tree with
Pointed End |
SG-1L6 |
1/4" |
1/2" |
1/4" |
| SG-3L6 |
3/8" |
3/4" |
1/4" |
| SG-5L6 |
1/2" |
1" |
1/4" |
| SH - Flame |
SH-2L6 |
5/16" |
3/4" |
1/4" |
SL - 14 Degree Taper
with Radius End |
SL-1L6 |
1/4" |
5/8" |
1/4" |
| SL-3L6 |
3/8" |
1-1/16" |
1/4" |
| SL-4L6 |
1/2" |
1-1/8" |
1/4" |
